Adding TPMS to a Rubber-Tyred Gantry Crane (RTG) without the need to remove the tyre and take the machine out of service for hours. There are options for a stand-alone installation with a screen in the cab for the driver/operator or a connected solution giving the fleet or site manager a view on the tyre performance and safety of the whole fleet.

ATLAS can track machines and vehicles all around the port.

TPMS on an RTG

After Market – The Whole Fleet

Why not fit TPMS to the whole fleet? It takes less than an hour to fit an ATLAS TPMS system without the need or cost of taking the machine out of action for hours. The benefits of TPMS significant savings in running costs.

Even the Most Challenging of Installations

Monitoring RTG tyres can be challenging; ATLAS TPMS has been proven to provide reliable and prompt feedback to ensure rapid action to protect a valuable asset and ensure the safety of personnel.

Fleet TPMS on a Rubber-Tyred Gantry Crane (RTG)

ATLAS allows a fleet or site manager to manage the tyre performance of the whole port fleet via the ATLAS Insight web application.

Connected TPMS on an RTG

The following components would be required for an installation:

Part NumberDescription
ATLASFleet Gateway (ATLAS Griffin)
ATL-202PLATLAS Power Lead
PLS-850KRF Antenna (to receive pressure readings from sensors)
ATL-333ANCellular and GPS antennas
SEN-220Industrial TPMS Sensors (mounted on the valve)
Components for a connected TPMS solution

Contact Tough Tech for details on the PressurePro Echo Repeater.

Components for an ATLAS RDT install
Connected TPMs on an RTG
Connected installation options on an RTG

It is recommended to add T-Valves to any SEN-220 Industrial Valve installation.

Installation of ATLAS is straight forward… …..find out more

Stand-Alone TPMS on an RTG

This configuration provides an in-cab screen/monitor for the crane operator to see tyre pressures and temperatures. Any alerts are immediately visible to the operator only.

For a connected fleet version use ATLAS

Part NumberDescription
LNK-101Gateway
SEN-220Industrial valve TPMS Sensor
LNK-202PDPower and data connection for Gateway
LNK-850KRF Antenna (to receive pressure readings from sensors)
LNK-110Universal Repeater (Connection to Gateway via powerline communication)
PLS-100Pulse Monitor
LNK-220PDPrivate network cable (power & data to Gateway & Pulse)
LNK-800ARF Whip Antenna (to receive pressure readings from sensors)
PLS-914MMounting kit for Pulse
PLS-200PPower cable for Pulse
Components for a stand-alone TPMS solution
Stand-alone TPMS on an RTG

IMPORTANT: The Gateway (LNK-101) and Universal Repeater (LNK-110) need to be on the same power supply because communication between the two is via Powerline Communication.

It is recommended to add T-Valves to any SEN-220 Industrial Valve installation.

A number of support videos exist to help with the installation for stand-alone TPMS installations.

LNK-101
SEN-220

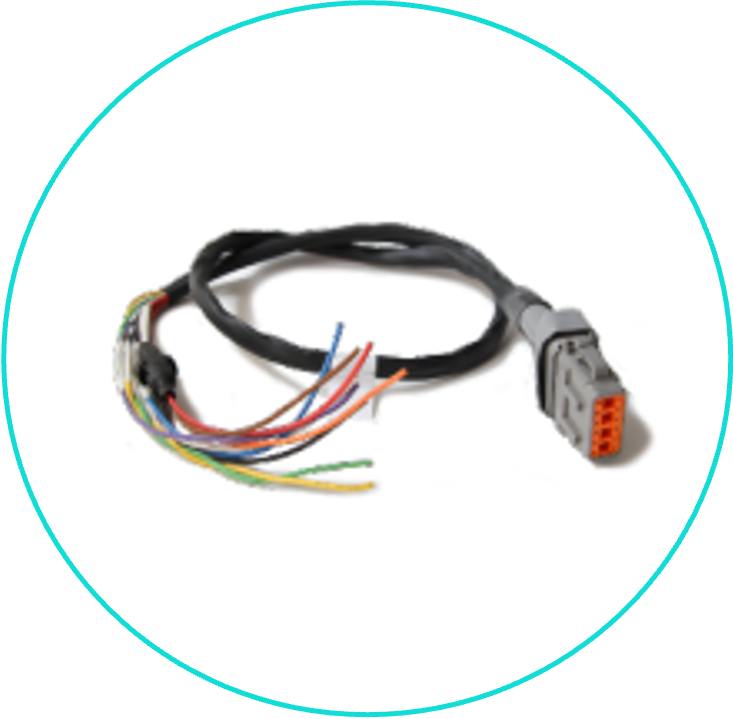

LNK-202PD

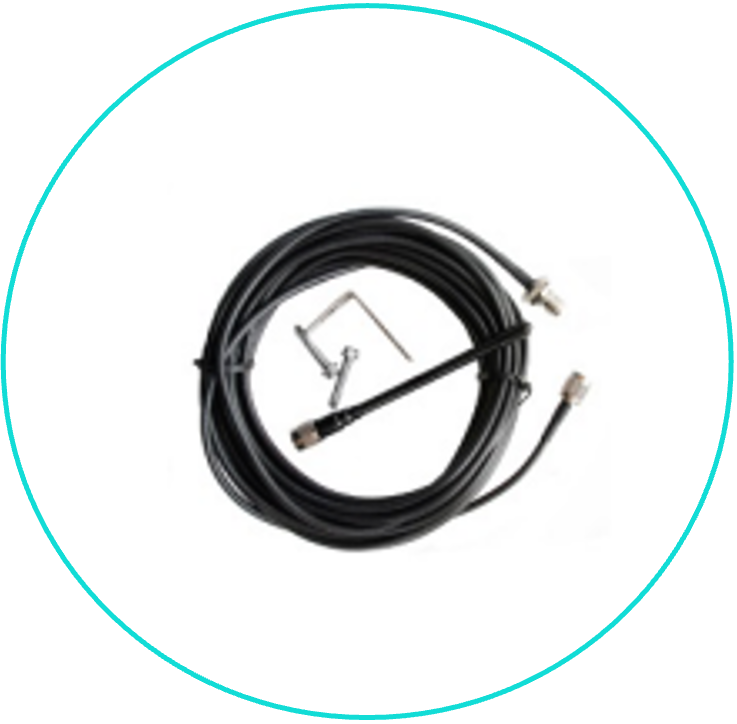

LNK-850K
LNK-110

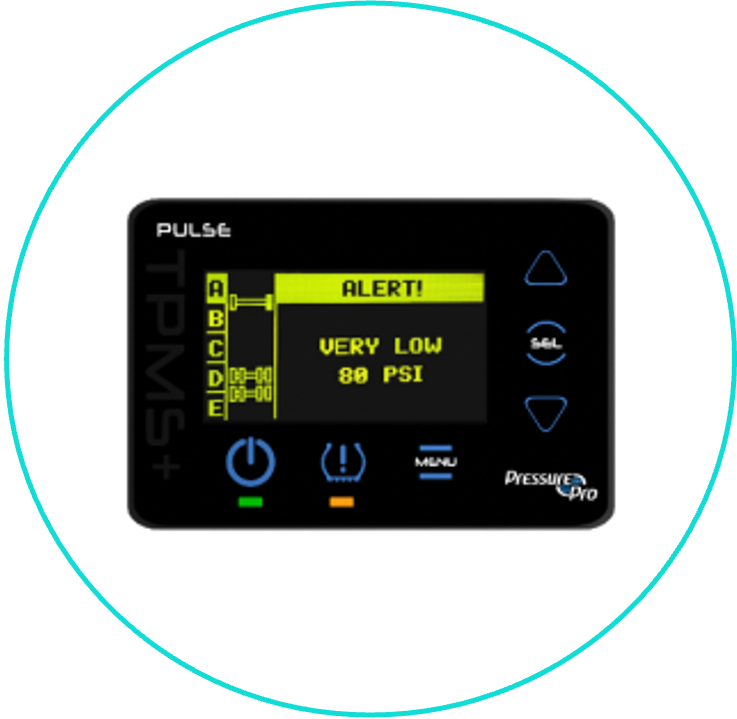

PLS-100

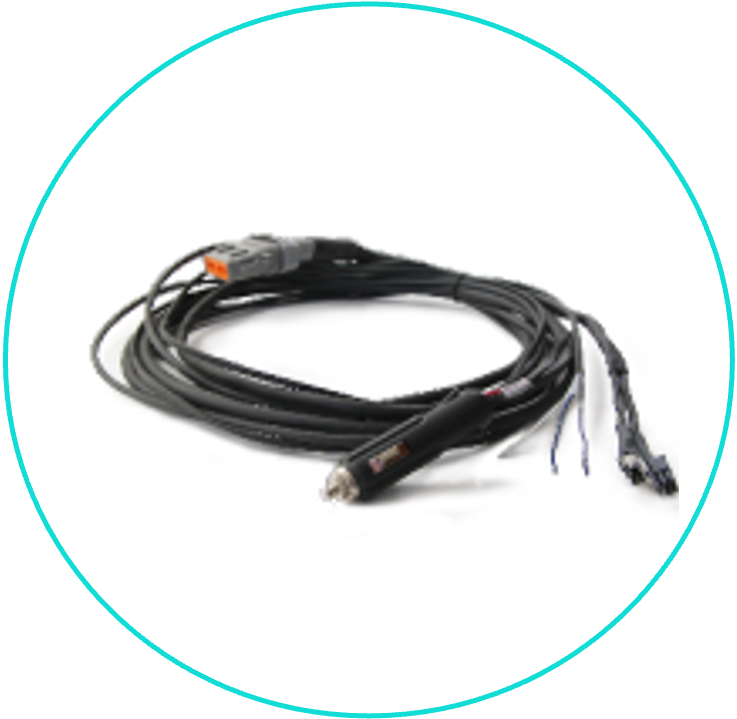

LNK-220PD

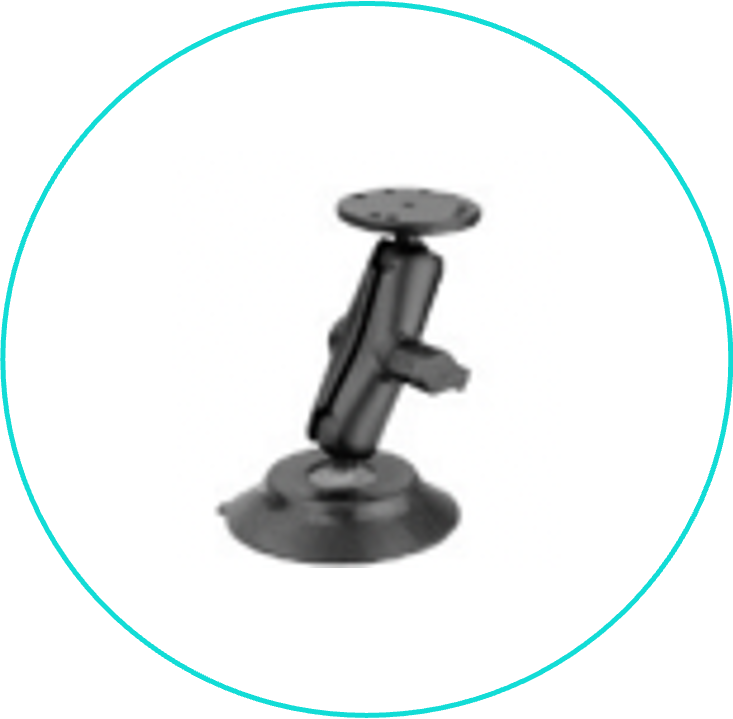

PLS-914M

TPMS on an RTG in Action

Tough Tech has experience in supporting customers through the task of adding TPMS.

Adriatic Gate Container Terminal

We have recently worked with one of our partner distributors, InStock Net of Slovenia to provide a connected ATLAS TPMS solution for RTG’s at the Adriatic Gate Container Terminal in Croatia.

Read more…..


Not Just A Complete Connected Solution For TPMS…
